| Specifications | CY2-52MB |
|---|---|
| Controller | Mitsubishi |
| Capacity | |
| Max. Turning Dia. | ∅51 mm |
| Standard Turning Dia. | ∅51 mm |
| Max. Turning Length | 180 mm |
| Axis specifications | |
| B-axis travel | 0.4 kw |
| X1/Y1/Z1-axis travel | 200/460/192 mm |
| X1/Y1/Z1-axis motor | 1.0 kw/2.2 kw/1.5 kw |
| X1/Y1/Z1-axis rapid travel speed | 20 m/min |
| X2/Y2/Z2-axis travel | 486/450/228 mm |
| X2/Y2/Z2-axis motor | 1.0 kw/2.2 kw/1.0 kw |
| X2/Y2/Z2-axis rapid travel speed | 20 m/min |
| Spindle | |
| Max. bar feeding dia. | ∅51 mm |
| Max. speed of spindle | 6000 rpm |
| Spindle collet | TRB-52 |
| Min. input unit | 0.001 mm |
| No. of O.D. tools | 5 (Op:4) |
| O.D. tool size | □20 mm |
| No. of I.D. tools | 5 (Op:4) |
| I.D. tool size | ∅25 mm |
| Spindle motor | 7.5 / 11kw |
| Spindle live tooling | |
| No. of radial live tooling | 6 (Op:3) |
| Radial live tooling size | ERA-20 |
| Max. speed of radial live tooling | 6000rpm |
| No. of axial live tooling | 6 (Op:3) |
| Max. speed of axial live tooling | 6000rpm |
| Axial and radial live tooling motor | 2.2 kw |
| Sub Spindle | |
| Max. bar feeding dia. | 51 mm |
| Max. speed of sub spindle | 6000 rpm |
| Max. turning. dia. | 51 mm |
| Sub spindle collet | TRB-52 |
| Min. input unit | 0.001 mm |
| No. of O.D. tool | 4 |
| O.D. tool size | □20 mm |
| No. of I.D. tool | 4 |
| I.D. tool size | ∅25 mm |
| Sub spindle servo motor | 7.5 / 11 kw |
| Sub spindle live tooling | |
| No. of radial live tools | 3 |
| No. of axial live tools | 3 |
| Axial and radial live tooling size | ERA-20 |
| Axial and radial live tooling motor | 2.2 kw |
| Max. speed axial and radial live tooling | 6000 rpm |
| Hydraulic unit | |
| Hydraulic pump | 1HP / 0.75kw |
| Coolant Pump | |
| Main & Sub spindle upper flush pump | 1HP / 0.75kw |
| Turret coolant pump | 1HP / 0.75kw |
| Sub-spindle internal coolant pump | 1.4HP / 1.1kw |
| Tank capacity | |
| Hydraulic tank | 60 L |
| Coolant tank | 280 L |
| Machine | |
| Voltage stabilizer / transformer | 220V / 45 KVA |
| Machine size(LxWxH) (includes chip conveyor) | 3726x2144x2080 mm |
| Machine N.W.(includes chip conveyor) | 6000 kg Machine:5567kg |

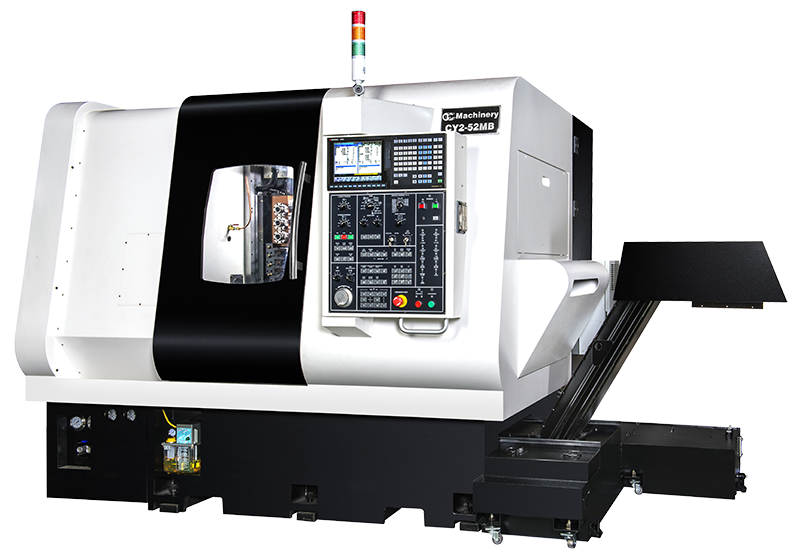

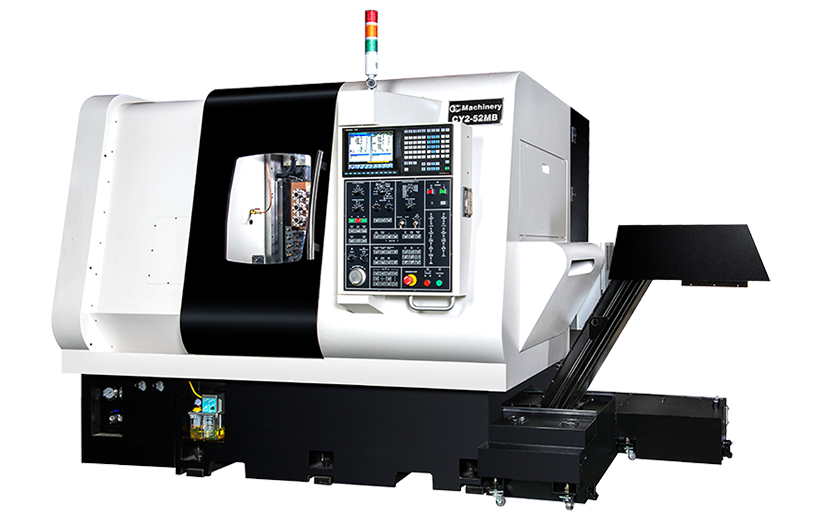

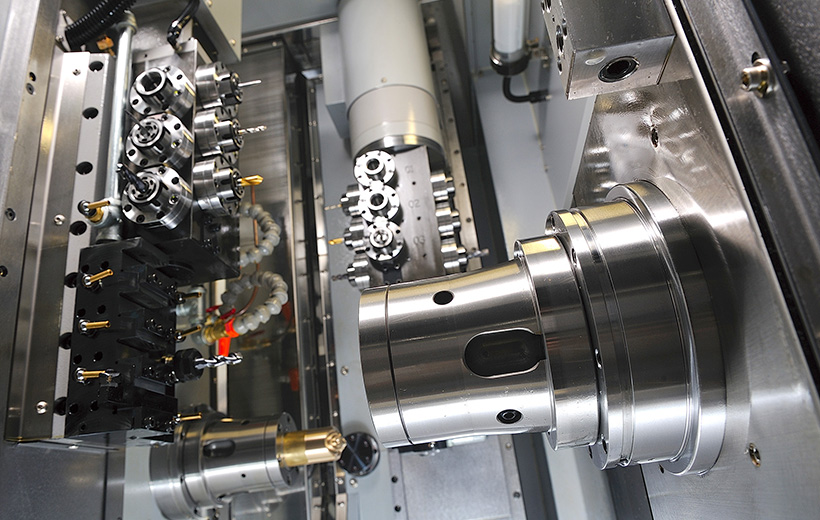

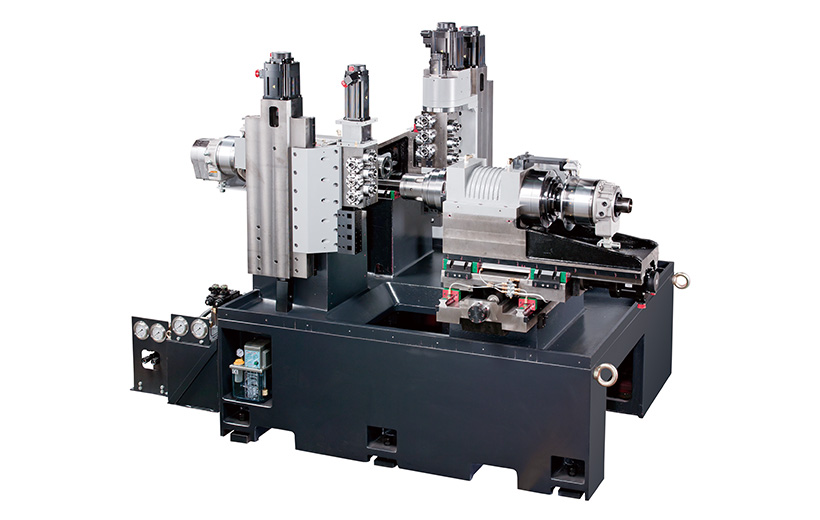

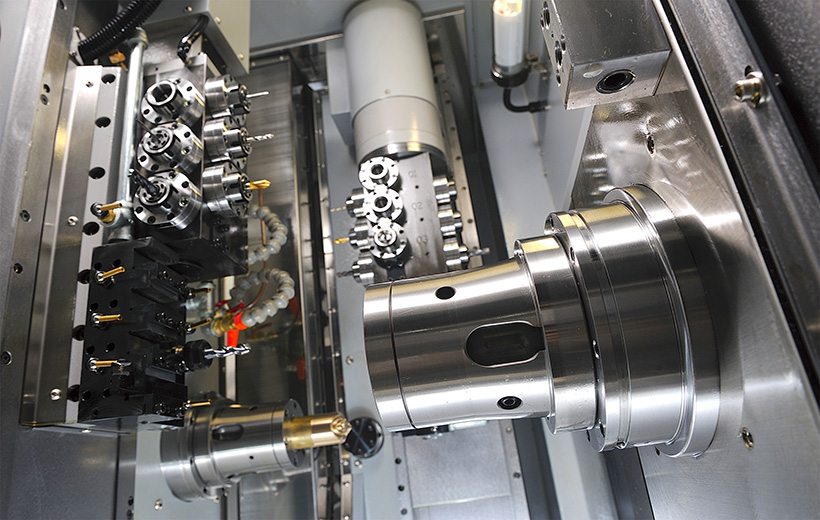

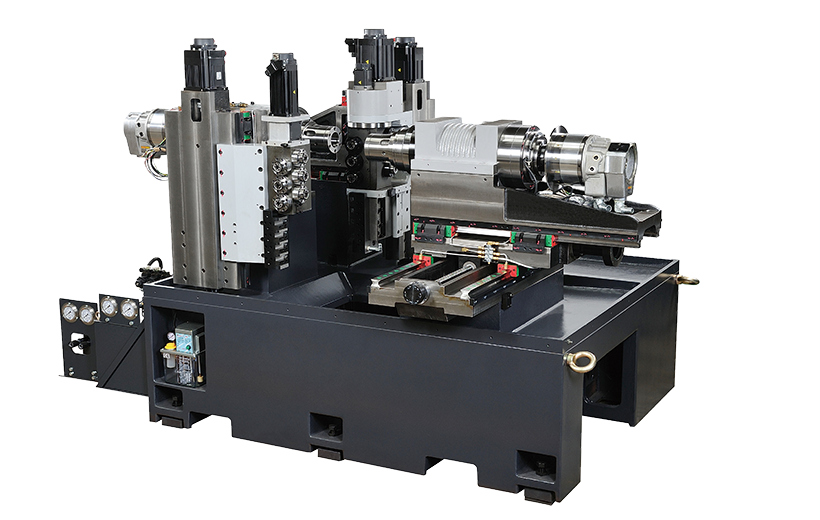

Fixed head - CY2-52MB
1. Double Y-axis
2. Double built-in spindle
3. B-axis live tooling 360° rotate function
2. Double built-in spindle
3. B-axis live tooling 360° rotate function
Features
- Double Y Axis：
- Double Y-axis function cuts complex parts while this can reduce processing time and increase productivity.
- 18-Station Live Tool System：
- B-axis and spindle tool system,12 radial and axial drive tool
- 6 sub-spindle drive tool
- Angle Machining：
- B axis can be swivelled to the desired degree, allowing the machine to perform angular drilling, tapping and milling with indexing accuracy to 0.001°
Applications
- Specification
- Optional
