| Model | SY2-26B | ||
|---|---|---|---|
| Controller | |||
| Controller | Syntec | Mitsubishi | Fanuc |
| Axes Specification | |||
| Max. cutting dia.(Bush/Bushless) | Ø26 mm | Ø26 mm | Ø26 mm |
| Max. cutting length (Bush/Bushless) | 190 / 40 mm | 190 / 40 mm | 190 / 40 mm |
| X1/Y1/Z1-Axes Travel(Bush) | 200 / 285 / 195 mm | 200 / 285 / 195 mm | 200 / 285 / 195 mm |
| X1/Y1/Z1-Axes Travel(Bushless) | 200 / 285 / 40 mm | 200 / 285 / 40 mm | 200 / 285 / 40 mm |
| X2/Y2/Z2-Axes Travel | 330 / 51.5 / 290 mm | 330 / 51.5 / 290 mm | 330 / 51.5 / 290 mm |
| X1/Y1/Z1-Axes Rapid Traverse | 30 m/min | 30 m/min | 30 m/min |
| X2/Y2/Z2-Axes Rapid Traverse | 30 / 5 / 30 m/min | 30 / 5 / 30 m/min | 30 / 5 / 30 m/min |
| Min. input unit | 0.001 mm | 0.001 mm | 0.001 mm |
| Main Spindle | |||
| Max. spindle speed | 10000 rpm | 10000 rpm | 10000 rpm |
| Collet of spindle | ST25 | ST25 | ST25 |
| C-axis index positioning | 0.001° | 0.001° | 0.001° |
| Spindle motor | 5.5 kw | 3.7 kw | 3.7 kw |
| Spindle Driven Type | Built-in spindle | Built-in spindle | Built-in spindle |
| O.D. turning tool size | 6 / □12 | 6 / □12 | 6 / □12 |
| I.D. turning tool size | 5 / Ø22 | 5 / Ø22 | 5 / Ø22 |
| Live Tool Max Speed | 8000 rpm | 8000 rpm | 8000 rpm |
| Main Spindle Live Tool Motor | 2.2 kw | 2.2 kw | 2.2 kw |
| No. of radial live tooling / size | 3 (ER-20*1, ER-16*2) | 3 (ER-20*1, ER-16*2) | 3 ( ER-20*1, ER-16*2) |
| Sub spindle | |||
| Max. sub spindle speed | 10000 rpm | 10000 rpm | 10000 rpm |
| Collet of sub spindle | ST25 | ST25 | ST25 |
| C-axis index positioning | 0.001° | 0.001° | 0.001° |
| Sub spindle motor | 5.5 kw | 3.7 kw | 3.7 kw |
| Sub Spindle Driven Type | Built-in spindle | Built-in spindle | Built-in spindle |
| Max. axial live tooling speed | 8000 rpm | 8000 rpm | 8000 rpm |
| Live Tooling Motor | 0.75 kw | 1.5 kw | 1 kw |
| No. of Axial Tools | 8pcs / ER-16 | 8pcs / ER-16 | 8pcs / ER-16 |
| No. of Deep Drilling Tool Holder Size / Number | 2 / Ø22 | 2 / Ø22 | 2 / Ø22 |
| Machine Specification | |||
| Voltage stabilizer / transformer | 33 KVA | 30 KVA | 30 KVA |
| Spindle Upper Flush Pump | 1.6 HP | 1.6 HP | 1.6 HP |
| Tool Coolant Pump | 1.6 HP | 1.6 HP | 1.6 HP |
| Main / Sub Spindle Cooling | Oil cooling | Oil cooling | Oil cooling |
| Main / Sub Spindle Clamping System | Pneumatic chuck device | Pneumatic chuck device | Pneumatic chuck device |
| Lubrication Tank Capacity | 2 L | 2 L | 2 L |
| Coolant Tank Capacity | 200 L | 200 L | 200 L |
| Machine size(LxWxH) | 2498 x 1400 x 1700 mm | 2498 x 1400 x 1700 mm | 2498 x 1400 x 1700 mm |
| Machine N.W. (Not includes chip conveyor) | 3200 kg | 3200 kg | 3200 kg |
| Air Pressure Requirement | 0.6 Bar | 0.6 Bar | 0.6 Bar |

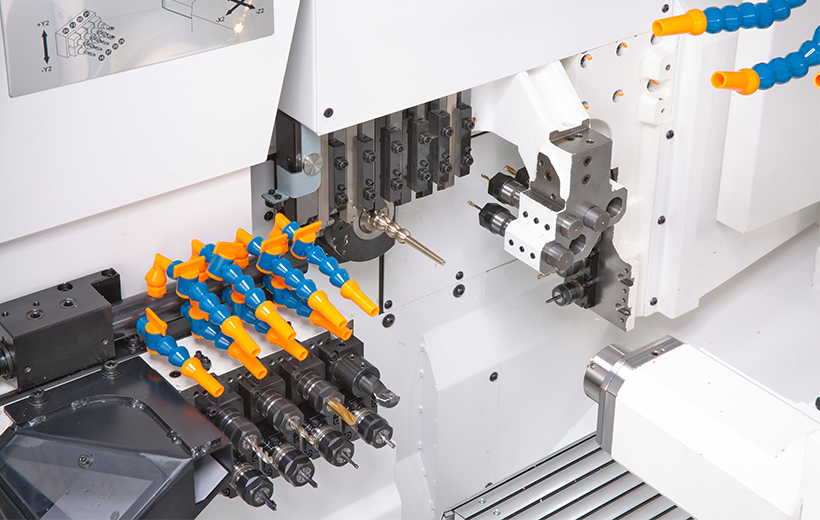

Swiss-Type / Sliding Head - SY2-26B
1. Double built-in spindle, removable guide bush
2. Multi-Functional Tooling system with Y1/Y2 axis, max load up to 17 live tools.
3. Two deep drilling holder beside sub spindle
2. Multi-Functional Tooling system with Y1/Y2 axis, max load up to 17 live tools.
3. Two deep drilling holder beside sub spindle
Features
- High accuracy built-in spindles, 5.5kw, 10000rpm with C axis indexing function.
- Large number of available tools allows you to complete a job in one set-up.
- Main Spindle
- 1. O.D Tool Positions (口 12mm)*6
- 2. I.D Tool Positions (ø 22mm)*5
- 3. Radial Driven Tool Positions *5 (3 fixed unit / 2 expansion unit)
- Sub Spindle
- 4. Y2 with Axial Driven Tool Positions * 8 (4 Fixed Tool Holders / 4 Driven Tool Holders)
- 5. Sub Spindle applied 2 deep drill devices.
Applications
- Specification
- Optional
Search
Optional
- CE Marking
- Oil Mist Extractor
- Voltage Stabilizer / Transformer
- Chip Conveyors
- Auto Bar Feeder
- High Pressure Coolant Device
- Cutting Liquid Coolant Chiller Device
- Chip Breaking Technology (Syntec)
